Sunday, September 25, 2016

Provenance and causality in distributed systems

Can you take a piece of data in your system and say what version of code put it in there, based on what messages from other systems? and what information a human viewed before triggering an action?

Me neither.

Why is this acceptable? (because we're used to it.)
We could make this possible. We could trace the provenance of data. And at the same time, mostly-solve one of the challenges of distributed systems.

Speaking of distributed systems...

In a distributed system (such as a web app), we can't say for sure what events happened before others. We get into general relativity complications even at short distances, because information travels through networks at unpredictable speeds. This means there is no one such thing as time, no single sequence of events that says what happened before what. There is time-at-each-point, and inventing a convenient fiction to reconcile them is a pain in the butt.

We usually deal with this by funneling every event through a single point: a transactional database. Transactions prevent simultaneity. Transactions are a crutch.

Some systems choose to apply an ordering after the fact, so that no clients have to wait their turn in order to write events into the system. We can construct a total ordering, like the one that the transactional database is constructing in realtime, as a batch process. Then we have one timeline, and we can use this to think about what events might have caused which others. Still: putting all events in one single ordering is a crutch. Sometimes, simultaneity is legit.

When two different customers purchase two different items from two different warehouses, it does not matter which happened first. When they purchase the same item, it still doesn't matter - unless we only find one in inventory. And even then: what matters more, that Justyna pushed "Buy" ten seconds before Edith did, or that Edith upgraded to 1-day shipping? Edith is in a bigger hurry. Prioritizing these orders is a business decision. If we raise the time-ordering operation to the business level, we can optimize that decision. At the same time, we stop requiring the underlying system to order every event with respect to every other event.

On the other hand, there are events that we definitely care happened in a specific sequence. If Justyna cancels her purchase, that was predicated on her making it. Don't mix those up. Each customer saw a specific set of prices, a tax amount, and an estimated ship date. These decisions made by the system caused (in part) the customer's purchase. They must be recorded either as part of the purchase event, or as events that happened before the purchase.

Traditionally we record prices and estimated ship date as displayed to the customer inside the purchase. What if instead, we thought of the pricing decision and the ship date decision as events that happened before the purchase? and the purchase recorded that those events definitely happened before the purchase event?

We would be working toward establishing a different kind of event ordering. Did Justyna's purchase happen before Edith's? We can't really say; they were at different locations, and neither influenced the other. That pricing decision though, that did influence Justyna's purchase, so the price decision happened before the purchase.

This allows us to construct a more flexible ordering, something wider than a line.

Causal ordering

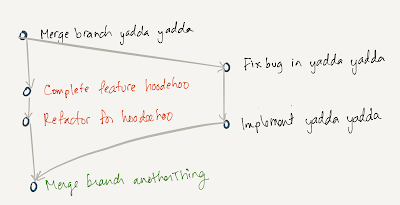

Consider a git history. By default, git log prints a line of commits as if they happened in that order -- a total ordering.



But that's not reality. Some commits happen before others: each commit I make is based on its parent, and every parent of that parent commit, transitively. So the parent happened before mine. Meanwhile, you might commit to a different branch. Whether my commit happened before yours is irrelevant. The merge commit brings them together; both my commit and yours happen before the merge commit, and after the parent commit. There's no need for a total ordering here. The graph expresses that.


This is a causal ordering. It doesn't care so much about clock time. It cares what commits I worked from when I made mine. I knew about the parent commit, I started from there, so it's causal. Whatever you were doing on your branch, I didn't know about it, it wasn't causal, so there is no "before" or "after" relationship to yours and mine.

We can see the causal ordering clearly, because git tracks it: each commit knows its parent or parent. The cause of each commit is part of the data in the commit.

Back to our retail example. If we record each event along with the events that caused it, then we can make a graph with enough of a causal ordering.


There are two reasons we want an ordering here: external consistency and internal legibility.

External Consistency

External consistency means that Justyna's experience remains true. Some events are messages from our software system to Justyna (the price is $), and others are messages coming in (Confirm Purchase, Cancel Purchase). The sequence of these external interactions constrains any event ordering we choose. Messages crossing the system boundary must remain valid.

Here's a more constricting example of external consistency: when someone runs a report and sees a list of transactions for the day, that's an external message. That message is caused by all the transactions reported in it. If another transaction comes in late, it must be reported later as an amendment to that original report -- whereas, if no one had run the report for that day yet, it could be lumped in with the other ones. No one needs to know that it was slow, if no one had looked.

Have you ever run a report, sent the results up the chain, and then had the central office accuse you of fudging the numbers because they run the same report (weeks later) and see different totals? This happens in some organizations, and it's a violation of external consistency.

Internal Legibility

Other causal events are internal messages: we displayed this price because the pricing system sent us a particular message. The value of retaining causal information here is troubleshooting, and figuring out how our system works.

I'm using the word "legibility"[1] in the sense of "understandability:" as a person we have visibility into the system's workings, we can follow along with what it's doing. Distinguish its features, locate problems and change it.

 If Justyna's purchase event is caused by a ship date decision, and the ship date decision ("today") tracked its causes ("the inventory system says we have one, with more arriving today"), then we can construct a causal ordering of events. If Edith's purchase event tracked a ship date decision ("today") which tracked its causes ("the inventory system says we have zero, with more arriving today"), then we can track a problem to its source. If in reality we only send one today, then it looks like the inventory system's shipment forecasts were inaccurate.

How would we even track all this?

The global solution to causal ordering is: for every message sent by a component in the system, record every message received before that. Causality at a point-in-time-at-a-point-in-space is limited to information received before that point in time, at that point in space. We can pass this causal chain along with the message.

"Every message received" is a lot of messages. Before Justyna confirmed that purchase, the client component received oodles of messages, from search results, from the catalog, from the ad optimizer, from the review system, from the similar-purchases system, from the categorizer, many more. The client received and displayed information about all kinds of items Justyna did not purchase. Generically saying "this happened before, therefore it can be causal, so we must record it ALL" is prohibitive.

This is where business logic comes in. We know which of these are definitely causal. Let's pass only those along with the message.

There are others that might be causal. The ad optimizer team probably does want to know which ads Justyna saw before her purchase. We can choose whether to include that with the purchase message, or to reconstruct an approximate timeline afterward based on clocks in the client or in the components that persist these events. For something as aggregated as ad optimization, approximate is probably good enough. This is a business tradeoff between accuracy and decoupling.

Transitive causality

How deep is the causal chain passed along with a message?

We would like to track backward along this chain. When we don't like the result of Justyna and Edith's purchase fulfillment, we trace it back. Why did the inventory system said the ship date would be today in both cases. This decision is an event, with causes of "The current inventory is 1" and "Normal turnover for this item is less than 1 per day"; or "The current inventory is 0" and "a shipment is expected today" and "these shipments usually arrive in time to be picked the same day." From there we can ask whether the decision was valid, and trace further to learn whether each of these inputs was correct.

If every message comes with its causal events, then all of this data is part of the "Estimated ship date today" sent from the inventory system to the client. Then the client packs all of that into its "Justyna confirmed this purchase" event. Even with slimmed-down, business-logic-aware causal listings, messages get big fast.

Alternately, the inventory system could record its decision, and pass a key with the message to the client, and then the client only needs to retain that key. Recording every decision means a bunch of persistent storage, but it doesn't need to be fast-access. It'd be there for troubleshooting, and for aggregate analysis of system performance. Recording decisions along with the information available at the time lets us evaluate those decisions later, when outcomes are known.

Incrementalness

A system component that chooses to retain causality in its events has two options: repeat causal inputs in the messages it sends outward; or record the causal inputs and pass a key in the messages it sends outward.

Not every system component has to participate. This is an idea that can be rolled out gradually. The client can include in the purchase event as much as its knows: the messages it received, decisions it made, and relevant messages sent outward before this incoming "Confirm Purchase" message was received from Justyna. That's useful by itself, even when the inventory system isn't yet retaining its causalities.

Or the inventory system could record its decisions, the code version that made them, and the inputs that contributed to them, even though the client doesn't retain the key it sends in the message. It isn't as easy to find the decision of interest without the key, but it could still be possible. And some aggregate decision evaluation can still happen. Then as other system components move toward the same architecture, more benefits are realized.

Conscious Causal Ordering

The benefits of a single, linear ordering of events are consistency, legibility, and visibility into what might be causal. A nonlinear causal ordering gives us more flexibility, consistency, a more accurate but less simplified legibility, and clearer visibility into what might be causal. Constructing causal ordering at the generic level of "all messages received cause all future messages sent" is expensive and also less meaningful than a business-logic-aware, conscious causal ordering. This conscious causal ordering gives us external consistency, accurate legibility, and visibility into what we know to be causal.

At the same time, we can have provenance for data displayed to the users or recorded in our databases. We can know why each piece of information is there, and we can figure out what went wrong, and

I think this is something we could do, it's within our ability today. I haven't seen a system that does it, yet. Is it because we don't care enough -- that we're willing to say "yeah, I don't know why it did that, can't reproduce, won't fix"? Is it because we've never had it before -- if we once worked in a system with this kind of traceability, would we refuse to ever go back?




[1] This concept of "legibility" comes from the book Seeing Like a State.

Wednesday, August 17, 2016

Harder and better (slides)

At Scenic City Summit in Chattanooga last week, I gave a closing keynote about 3 ways our jobs are harder than they used to be, and how each of these makes our jobs better.

Annotated slides are on Dropbox.

Saturday, May 7, 2016

Tradeoffs in Coordination Among Teams

The other day in Budapest, Jez Humble and I wondered, what is the CAP theorem for teams? In distributed database systems, the CAP theorem says: choose two of Consistency, Availability, and Partitioning — and you must choose Partitioning.
Consider a system for building software together. Unless the software is built by exactly one person, we have to choose Partitioning. We can’t meld minds, and talking is slow.
In databases we choose between Consistency (the data is the same everywhere) and Availability (we can always get the data). As teams grow, we choose between Consensus (doing things for the same reasons in the same way) and Actually-getting-things-done.
Or, letting go of the CAP acronym: we balance Moving Together against Moving Forward.

Moving Together


A group of 1 is the trivial case. Decision-making is the same as consensus. All work is forward work, but output is very limited, and when one person is sick everything stops.

A group of 2-7 is ideal: the communication comes with interplay of ideas, and whole new outputs of dialogue make up for the time cost of talking to each other. It is still feasible for everyone in the group to have a mental model of each other person, to know what that person needs to know. Consensus is easy to reach when every stakeholder is friends with every other stakeholder.

Beyond one team, the tradeoffs begin. Take one team of 2-7 people working closely together. Represent their potential output with this tall, hollow arrow pointing up.


This team is building software to run an antique store. Look at them go, full forward motion. (picture: tall, filled arrow.)

Next we add more to the web site while continuing development on the register point-of-sale tools. We break into two teams. We’re still working with the same database of items, and building the same brand, so we coordinate closely. We leverage each others' tools. More people means more coordination overhead, but we all like each other, so it’s not much burden. We are a community, after all.
A green arrow and a red arrow, each connected by many lines of communication, are filled about halfway up with work.

Now the store is doing well. The web site attracts more retail business, the neighboring antique stores want to advertise their items on our site, everything is succeeding and we add more people. A team for partnerships, which means we need externally-facing reports, which means we need a data pipeline.
A purple arrow and a blue arrow join the red and green ones. Lines crisscross between them, a snarly web. The arrows are filled only a little because of these coordination costs. The purple arrow is less connected, and a bit more full, but it's pointed thirty degrees to the left.

The same level of consensus and coordination isn’t practical anymore. Coordination costs weigh heavily. New people coming in don’t get to build a mental model of everyone who already works there. They don’t know what other people know, or which other people need to know something. If the partnerships team touches the database, it might break point of sale or the web site, so they are hamstrung. Everyone needs to check everything, so the slowest-to-release team sets the pace. The purple team here is spending less time on coordination, so the data pipeline is getting built, but without any ties to the green team, it’s going in a direction that won’t work for point of sale.

This mess scales up in the direction of mess. How do we scale forward progress instead?

Moving Forward


The other extreme is decoupling. Boundaries. A very clear API between the data pipeline, point of sale, and web. Separate databases, duplicating data when necessary. This is a different kind of overhead: more technical, less personal. Break the back-end coupling at the database; break the front-end (API) coupling with backwards compatibility. Teams operate on their own schedules, releases are not coordinated. This is represented by wider arrows, because backwards compatibility and graceful degradation are expensive.
Four arrows, each wide and short. A few lines connect them. They're filled, but the work went to width (solidness) rather than height (forward progress).

These teams are getting about as far as the communication-burdened teams. The difference is: this does scale out. We can add more teams before coordination becomes a limitation again.

Amazon is an extreme example of this: backwards compatible all the things. Each team Moving Forward in full armor. Everything fully separate, so no team can predict what other teams depend on. This made the AWS products possible. However, this is a ton of technical overhead, and maybe also not the kindest culture to work in.

Google takes another extreme. Their monorepo allows more coupling between teams. Libraries are shared. They make up for this with extreme tooling. Tests, refactoring tools, custom version control and build systems — even whole programming languages. Thousands of engineers work on infrastructure at Google, so that they can Move Together using technical overhead.

Balance


For the rest of us, in companies with 7-1000 engineers, we can’t afford one extreme or the other. We have to ask: where is consensus important? and where is consensus holding us back?

Consensus is crucial in objectives and direction. We are building the same business. The business results we are aiming for had better be the same. We all need to agree on “Which way is up?"

Consensus is crippling at the back end. When we require any coordination of releases. When I can’t upgrade a library without impacting other teams in way I can't predict. When my database change could break a system more production-critical than mine. This is when we are paralyzed. Don't make teams share databases or libraries.

What about leveraging shared tools and expertise? if every team runs its own database, those arrows get really wide really fast, unless they skimp on monitoring and redundancy — so they will skimp and the system will be fragile. We don't want to reinvent everything in every team.

The answer is to have a few wide arrows. Shared tools are great when they’re maintained as internal services, by teams with internal customers. Make the data pipeline serve the partnership and reporting teams. Make a database team to supply well-supported database instances to the other teams. (They’re still separate databases, but now we have shared tools to work with them, and hey look, a data pipeline for syncing between them.)


The green, red, and blue arrows are narrow and tall, and mostly full of work, with some lines connecting them. The purple arrow and a new black arrow are wide and short and full of work. The wide arrows (internal services) are connected to the tall arrows (product teams) through their tips.

Re-use helps only when there is a solid API, when there is no coupling of schedules, and when the providing team focuses on customer service.

Conclusions


Avoid shared code libraries, unless you’re Google and have perfect test coverage everywhere, or you’re Amazon and have whole teams supporting those libraries with backwards compatibility.
Avoid shared database instances, but build internal teams around supporting common database tools.

Encourage shared ideas. Random communication among people across an organization has huge potential. Find out what other teams are doing, and that can refine your own direction and speed your development — as long as everything you hear is information, not obligation.

Reach consensus on what we want to achieve, why we are doing it, and how (at a high level) we might achieve it. Point in the same direction, move independently.

Every organization is a distributed system, even when we sit right next to each other. Coordination makes joint activity possible, but not free. Be conscious of the tradeoffs as your organization grows, as consensus becomes less useful and more expensive. Recognize that new people entering the organization experience higher coordination costs than you do. Let teams move forward in their own way, as long as we move together in a common direction. Distributed systems are hard, and we can do it.







Bonus material

Here is a picture of Jez in Budapest.



And here is a paper about coordination costs:
Common Ground and Coordination in Joint Activity

Saturday, April 16, 2016

Property Testing in Elm

Elm is perfectly suited to property testing, with its delightful data-in--data-out functions. Testing in Elm should super easy.

The tooling isn't there yet, though. This post documents what was necessary today to get a property to run in Elm.

Step 1: elm-test

This includes an Elm library and a node module for a command-line runner. The library alone will let you create a web page of test results and look at it, but I want to run them in my build script and see results in my terminal.

Installation in an existing project:
elm package install deadfoxygrandpa/elm-test
npm install -g elm-test
The node module offers an "elm test init" functionality to put some test files in the current directory: TestRunner (which is the Main module for test runs[1]) and Tests.elm which holds actual tests. Personally, I found it necessary to follow the following steps as well.

  • create a test directory (I don't want tests in my project home), and move the TestRunner.elm and Tests.elm files there.
  • add that test directory to the source directories in elm-package.json

Step 2: elm-check


The first thing to know is: which elm-check to install. You need the one from NoRedInk:
elm package install NoRedInk/elm-check
The next thing is: what to import. Where do all those methods used in the README live?

Here is a full program that lets elm-test execute the properties from the elm-check readme.
TL;DR: You need to import stuff from Check and Check.Producer for all properties; and  for the runner program, ElmTest and Check.Test and Signal, Console, and Task.

Name it test/Properties.elm and run it with
elm test test/Properties.elm
The output looks like
Successfully compiled test/Properties.elm
Running tests...
  1 suites run, containing 2 tests
  All tests passed
Here's the full text just in case.
module Main (..) where
import ElmTest
import Check exposing (Evidence, Claim, that, is, for)
import Check.Test
import Check.Producer as Producer
import List
import Signal exposing (Signal)
import Console exposing (IO)
import Task

console : IO ()
console =
  ElmTest.consoleRunner (Check.Test.evidenceToTest evidence)

port runner : Signal (Task.Task x ())
port runner =
  Console.run console

myClaims : Claim
myClaims =
  Check.suite
    "List Reverse"
    [ Check.claim
        "Reversing a list twice yields the original list"
        `that` (\list -> List.reverse (List.reverse list))
        `is` identity
        `for` Producer.list Producer.int
    , Check.claim
        "Reversing a list does not modify its length"
        `that` (\list -> List.length (List.reverse list))
        `is` (\list -> List.length list)
        `for` Producer.list Producer.int
    ]

evidence : Evidence
evidence =
  Check.quickCheck myClaims
How to write properties is a post for another day. For now, at least this will get something running.

See also: a helpful post for running elm-check in phantom.js


[1] How does that even work? I thought modules needed the same name as their file name. Apparently this is not true of Main. You must name the module Main. You do not have to have a 'main' function in there (as of this writing). The command-line runner needs the 'console' function instead.

Thursday, March 31, 2016

Scaling Intelligence

You can watch the full keynote from Scala eXchange 2015 (account creation required, but free). The talk includes examples and details; this post is a summary of one thread.

Scala is a scalable language, from small abstractions to large ones. This helps with the one scaling problem every software system has: scaling the feature set while still fitting it in our heads. Scaling our own intelligence.

Scala offers complicated powerful language features built from combinations of simpler language features. The aim is a staircase of learning: gradually learn features as you need them. The staircase starts in the green grass of toy programs, moves through the blue sky of useful business software, and finally into the outer space of abstract libraries and frameworks. (That dark blob is supposed to represent outer space.)


This is not how people experience the language.

The green grass is great: Odersky's Coursera courses, Atomic Scala. Next, we want to write something useful for work: the blue sky. It is time to use libraries and frameworks. I want a web app, so I bring in Spray. Suddenly I need to understand typeclasses and the magnet pattern. The magnet pattern? The docs link to a post on this. It's five thousand words long. I'm shooting into outer space -- I don't want to be an astronaut yet!

The middle of the staircase is missing.


Who can repair this? Not the astronauts, the compiler and library authors. They can write posts around program language theory, defining one feature in terms of a bunch of other concepts I don't understand yet. I need explanations by people who share my objectives, people a little bit ahead of me in the blue sky, who recently learned how to use Spray themselves. I don't need research papers, I need StackOverflow. Blog posts, not textbooks.

This is where we need each other. As a community, we can fill this staircase. At a macro level, we scale intelligence with teaching.

Scala as a language is not enough. We don't work in languages, especially not in the blue sky. We work in language systems, including all the libraries and tooling and all the people. The resources we create, and the personal interactions in real life and online. When we teach each other, we scale our collective intelligence, we scale our community.

Scaling the community is important, because only a large, diverse group can answer two crucial questions. To make the language and libraries great, we need to know about each feature: is this useful? and to make this staircase solid, we need to know about each source and document: is this clear?

Useful isn't determined by the library author, but by its users. Clear isn't determined by the writer, but by the reader. If you read the explanation of Futures on the official Scala site and you don't get it, if you feel stupid, that is not your fault. When documentation is not clear to you, its maintainers fail. Teaching means entering the context of the learner, and starting there. It means reaching for the person a step or two down, and pulling them up to where you are.

Michael Bernstein described his three years of learning Haskell. "I tried over and over again to turn my self doubt into a pure functional program, and eventually, it clicked."
Ouch. Not everyone has this tenacity. Not everyone has three years to spend becoming an astronaut. Teaching makes the language accessible to more people. At the same time, it makes everyone's life easier -- what might Mr Bernstein have accomplished during that year?

Scala, the language system, does not belong to Martin Odersky.  It belongs to everyone who makes Scala useful. We can each be part of this.

Ask and answer questions on StackOverflow. Blog about what you learned, especially about why it was useful.[1] Request more detail -- if something is not clear to you, then it is not clear. Speak at your local user group.[2] The less type theory you understand, the more people you can help!

Publish your useful Scala code. We need examples from the blue sky. If you do, tweet about it with #blueSkyScala.

It is up to all of us to teach each other, to scale our intelligence. Then we can make use of those abstractions that Scala builds up. Then it will be a scalable language.




[1] example: Remco Beckers's post on Option and Either and Try.
[2] example: Heather Miller's talk compensates for bad documentation around Scala Futures.

Thursday, December 31, 2015

Key signatures in piano music: the underlying technology

Today, sheet music (at least, the major keys) went from magic to technology for me. Magic is spellcasting, is memorization. Technology is understanding, is derivation. Technology takes up so much less space in my head!

If you can read music enough to pick out a simple song but wonder why chords and their weird names seem so obvious to some people, this post is for you.

Those markings at the beginning of the line that show which notes are played as sharps (called a key signature) - I have been trying to memorize their names. This one is called D Major, and it means that all Fs and Cs are to be played as sharps, hit the black key to the right instead of the white key.

D Major signature
I know how to play music with C# and F#, but why on earth is this called D Major? And why is it a thing?

Today I read a few pages in a book about scales, and now I get it. It takes some history to understand.

See, a long time ago the Greeks made a lyre with four strings, and they tuned the strings into a tetrachord, four notes that sound good. On a piano, a tetrachord is made out of four notes with the following separations: a whole step, then a whole step, then a half step. A whole step goes two keys, counting white and black keys; a half step is one key. Like walking -- right foot, left foot makes a whole step. One easy tetrachord starts with middle C:
From C to D is a whole step because there is a black key in between. From E to F is a half-step because there is no key in between. The C tetrachord is C, D, E, F.

The same formula makes a tetrachord starting from any key. The tetrachord starting with D goes D, E, F#, G.
A whole step from D is easy, skip the black key and hit E, a white key. A whole step from E means skipping the next key (F, a white key) and hitting the key after that (F#, a black key). Then a half step means the very next key (G, a white key). This is where the F# in the key signature is coming from.

But wait! There's more!

Put two tetrachords together to get an Ionian scale, also called a major scale. The tetrachords are separated by a whole step. In C, the first tetrachord is C, D, E, F. Take a whole step to G and start the next tetrachord. It goes G, A, B, C.


Eight notes, the last one the same as the first (one octave higher), make a major scale. The keys have this pattern of separations between them, made up of the Ionian scale and tetrachord patterns. Each scale uses a little over half the keys on the keyboard, and ignores the rest. Songs in C major use all white keys and none of the black keys. You want anything else, gotta put a sharp or flat symbol in front of the note.

What does this mean for D? The D major scale starts with the D tetrachord and adds a second tetrachord: D, E, F#, G; A, B, C#, D.


C# and F#! There they are, the two black keys with numbers on them! The "normal" keys to play in the D scale include C# and F# (black keys), but never C or F (white keys). Putting the D Major key signature in front of the music means that all the keys in the D scale look like ordinary notes.
With the C# and F# handled by the key signature, any special marking (sharp, flat, or natural) points out a note that is unexpected, that does not fit in with the rest.

The same pattern works for other key signatures; try constructing the Ionian scale for G out of two tetrachords separated by a whole step. You'll find that the only black key used is F#, so this is G major:
G major key signature
These are historical explanations for the structure of major scales, of seven different notes (plus the same notes in other octaves) that sound good together. There are scientific explanations too, even ratios of wavelengths.

On the piano, this means only 7/12 of the keys are used in any song, ordinarily. Why have the other keys? They bring equality to the different notes: any key can start a scale, because the whole-steps and half-steps are there no matter where you start. C is not special, just convenient. The circle is complete. Actually 12 circles for the 12 keys in an octave. So many patterns are visible to me now!

Now I can name the key signatures and say why they have those names. I don't have to memorize them, because I can derive them. Next I can learn chords and why certain ones like C and F and G7 appear together frequently. All of this from two pieces of vocabulary and some counting. Goodbye magic, hello math.

Sunday, November 22, 2015

Getting off the ground in Elm: project setup


If you have tried Elm and want to make a client bigger than a sample app, this post can help you get set up. Here, find what goes into each of my Elm repositories and why. This template creates a fullscreen Elm application with the potential for server calls and interactivity. This post is up-to-date as of Elm 0.16.0 on 11/21/2015, on a Mac.
TL;DR: Clone my sample repo; Change CarrotPotato to your project name everywhere it appears (elm-package.json; src/CarrotPotato.elm; index.html). Replace origin with your remote repository.

Step 0: Install Elm (once)

Run the latest installer.
To check that this worked, run `elm` at a terminal prompt. You should see a long usage message, starting with `Elm Platform 0.16.0 - a way to run all Elm tools`

Bonus: getting Elm text highlighting in your favorite text editor is a good idea. That's outside the scope of this post, because it was hard. I use Sublime 2 and this Elm plugin.

Step 1: Establish version control (every project)

Step 1A: create a directory and a repository.

Make a directory on your computer and initialize a git repository inside it.
mkdir CarrotPotato
cd CarrotPotato
git init

 Step 1B: configure version control

In every project, I use the first commit to establish which files do not belong under version control.
I'm going to have the Elm compiler write its output to a directory called target. I want to save the source code I write, not stuff that's generated from it, so git should not save the compiler output. Git ignores any files or directories whose names are in a file called .gitignore, so I put target in there.
The Elm package manager uses a directory called elm-stuff for its work. That doesn't belong in our repository, so put it in .gitignore too. I recommend making .gitignore the first file committed in any new repository.
echo "target" >> .gitignore
echo "
elm-stuff" >> .gitignore
git add .gitignore
git commit -m "New Elm project"

Step 2: Bring in core dependencies

The Elm package manager will install everything you need, including the core language, including the configuration it needs. To bring in any dependency, use `elm package install <dependency>`, where <dependency> is specified as github-user/repo-name. Most of the packages come from github users elm-lang or evancz (Evan Czaplicki is the author of Elm). All the packages that elm-package knows about are listed on package.elm-lang.org.

In keeping with the Elm Architecture, I use StartApp as the basis for all my projects. Bring it in:
elm package install evancz/start-app
elm-package is very polite: it looks at your project, decides what it needs to do, and  asks nicely for permission before doing anything. It will add the dependency to elm-package.json (creating the file if it doesn't exist), then install the package you requested (along with anything that package depends on) in a directory called elm-stuff.

Here's a gotcha: the StartApp install downloads its dependencies, but you can't use them directly until they are declared as a direct dependency of your project. And you can't actually use StartApp without also using Effects and Html. So install them too:
elm package install evancz/elm-html
elm package install evancz/elm-effects
Note: This step won't work without internet access. Elm's package manager doesn't cache things locally; everything is copied into elm-stuff within each project. On the upside, you can dig around in elm-stuff to look at the code (and embedded documentation) of any of your project's dependencies.

Step 3: Improve project configuration

3A: Welcome to elm-package.json

You now have an elm-package.json file in your project directory. Open it in your text editor.
{
    "version": "1.0.0",
    "summary": "helpful summary of your project, less than 80 characters",
    "repository": "https://github.com/user/project.git",
    "license": "BSD3"
,
    "source-directories": [
        "."
    ],
    "exposed-modules": [],
    "dependencies": {
        "elm-lang/core": "3.0.0 <= v < 4.0.0",
        "evancz/start-app": "2.0.2 <= v < 3.0.0"
    },
    "elm-version": "0.16.0 <= v < 0.17.0"
}
The project version, summary, etc. become crucial when you publish a new library to the central Elm package list. Until then, you can update them if you feel like it.

Note: the project's dependencies are specified as ranges. Elm is super specific about semantic versioning. It is impossible for one of the libraries you use to introduce a compilation-breaking change without going up a major version (the first section in the version number), so Elm knows that (for instance) any version of StartApp that's at least as high as its current one "2.0.2" and less than the next major version "3.0.0" is acceptable. This matters if you publish your project as a library for other people to use. For now it's just cool.

3B: Establish a source directory

With the default configurtion, Elm looks for project sources in "." (the current directory; project root). I want to put them in their own directory, so I change the entry in "source-directories" to "src". Then I create a directory called `src` in my project root.
mkdir src
[editor] elm-package.json
and set:
"source-directories": [

"src"
    ],

Step 4: Create the main module

4A: Bring in "hello world" code

Create a file src/CarrotPotato.elm (if the name of your project is CarrotPotato), and open it in your text editor.
touch src/CarrotPotato.elm
[editor]
src/CarrotPotato.elm
Every StartApp application starts about the same. I cut and paste most of this out of the StartApp docs, then added everything necessary to make it compile. It had to do something, so it outputs Hello World in an HTML text element.

Copy from this file, or this gist.

To understand this code, do the Elm Architecture Tutorial. (It's a lot. But it's the place to go to understand Elm.)

4B: compile the main module

I want this compiled into a JavaScript file in my `target` directory, so this is my build command:
elm make --output target/elm.js src/CarrotPotato.elm
When this works, a target/elm.js file should exist.

Note: by default, elm-make (v0.16) creates an index.html file instead of elm.js. That's fine for playing around, but in any real project I want control over the surrounding HTML.
Note: I ask elm-make to build the top-level module of my project. Once I add more source files, elm-make will compile all the ones that my top-level module brings in.

To remind myself of how to do this correctly, I put it in a script:
echo "elm make --output target/elm.js src/CarrotPotato.elm" >> build
chmod u+x
build
Then every time I want to compile:
./build

Step 5: Run the program in a web page

Elm runs inside a web page. Let's call that page index.html because that's the default name for these things. Create that file and put something like this into it:
touch index.html
[editor]
index.html
put this in:
<!DOCTYPE HTML>
<html>
<head>
  <meta charset="UTF-8">
  <title>CarrotPotato</title>
  <script type="text/javascript" src="target/elm.js"></script>
</head>
<body>
</body>

<script type="text/javascript">
  var app = Elm.fullscreen(Elm.
CarrotPotato, {});
</script>

</html>
The important parts here are:
  • in the header, set the page's title
  • in the header, bring in the compiler output; this matches the file I told elm-make to write to
  • in the header, you're free to bring in CSS
  • the body is empty
  • the script tag at the end activates my Elm module.
Save this file, and open it in your default browser:
open index.html
You should see "Hello World". Quick, make a commit!

Note: opening index.html as a file doesn't always work smoothly. If the browser gives you trouble, try running an http server in that directory instead. There's a very easy one available from npm.

Step 6: Go forth and Elminate

The foundation is set for an Elm project. From here, I can start building an application. Here are some things I often do next:
  • change the view function to show something more interesting. see elm-html for what it can retusrn.
  • make a git repository, push my project to it; update this in elm-package.json, and create a README.md
  • create a gh-pages branch to serve my project on the web (blog post on this coming soon, I hope)
  • break out my project's functionality into more modules, by creating files like src/CarrotPotato/View.elm and importing them from my main module
You can get everything up to this point without doing it yourself by cloning my elm-sample repo.
I do this:
git clone git@github.com:jessitron/elm-sample.git carrot-potato
< create repo at github called my-user/carrot-potato; copy its git url>
cd carrot-potato
git remote set-url origin git@github.com:my-user/carrot-potato.git

Comments and suggestions welcome! I'm sure this isn't the most optimal possible setup.
